Power Supplies
Power Supplies

Product Listing

Sort by
Products
 ProductCodeStock
5VDC 2A 10W Wall mounting USB power supply, 100-240VAC input, 2-pin USA AC pins, shortcircuit protection, over current protection, USB-A output connector, 30,000hr MTBF, black ABS plasticcase, pins 2 and 3 connected, MEPS level VI efficiency, FCC, CE, safety approvals5VDC 2A USB Wall Mount USA Power SupplyAED10C-0502000VLSU06/02/2025
USB Car charger style power supply (miniature) 12-24VDC input 5VDC 700ma outputUSB Car Charger 700mACC3028-BLACK12/12/2024
14.4V 3A LiFePO4 Battery charger, 115-230VAC input, 120mm x 55mm x 35mm, C8 AC power inputconnector, NZ plug, IP2014.4V 3A LiFePO4 Battery ChargerCH651-1440300D6/03/2025
20W 12VDC 170-250VAC IP67 Switch mode LED power supply 1-wire output wall mount20W 12VDC IP67 Power supplyCV-12020C6/02/2025
20W 12VDC 170-250VAC IP67 Switch mode LED power supply 1-wire output wall mount NZ AC Plug20W 12VDC IP67 Power supplyCV-12020C-AC9/01/2025
30W 12VDC 170-250VAC IP67 Switch mode LED power supply 1-wire output wall mount aluminium housingCE30W 12VDC IP67 Power SupplyCV-12030C6/02/2025
30W 12VDC 170-250VAC IP67 Switch mode LED power supply 1-wire output wall mount aluminium housingCE NZ AC Plug30W 12VDC IP67 Power SupplyCV-12030C-AC9/01/2025
45W 12VDC 170-250VAC IP67 Switch mode LED power supply 1-wire output wall mount aluminium housingCE45W 12VDC IP67 Power supplyCV-12045C6/02/2025
45W 12VDC 170-250VAC IP67 Switch mode LED power supply 1-wire output wall mount aluminium housingCE NZ AC Plug45W 12VDC IP67 Power supplyCV-12045C-AC9/01/2025
60W 12VDC 170-250VAC IP67 Switch mode LED power supply 1-wire output wall mount aluminium housingCE60W 12VDC IP67 Power supplyCV-12060C6/02/2025
60W 12VDC 170-250VAC IP67 Switch mode LED power supply 1-wire output wall mount aluminium housingCE NZ AC Plug60W 12VDC IP67 Power supplyCV-12060C-AC9/01/2025
100W 12VDC 170-250VAC IP67 Switch mode LED power supply 1-wire output wall mount aluminium housingCE100W 12VDC IP67 Power supplyCV-12100C6/02/2025
100W 12VDC 170-250VAC IP67 Switch mode LED power supply 1-wire output wall mount aluminium housingCE NZ AC Plug100W 12VDC IP67 Power supplyCV-12100C-AC9/01/2025
150W 12VDC 170-250VAC IP67 Switch mode LED power supply 1-wire output wall mount aluminium housingCE NZ AC Plug150W 12VDC IP67 Power SupplyCV-12150C-AC1
200W 12VDC 170-250VAC IP67 Switch mode LED power supply 1-wire output wall mount aluminium housingCE NZ AC Plug200W 12VDC IP67 Power supplyCV-12200C-AC2
Included with Product:

1 x EBC-A10H Battery Capacity Tester

4 x Tester Cables

1 x USB to TTL cable

1 x Power supply cable


Features:

1.1 Battery Capacity Test - Designed for charging and discharging a wide range of batteries/batterybanks, like NiMH, NiCd, LiPo, LiFe and Pb and supports capacity tests.

1.2 Portable Power Bank Test - The tester supports charging and discharging of portable power banks,as well as testing their capacities.

1.3 Power Performance Test - Supports performance and aging tests of various kinds of DC powersupplies.


Specifications:

- Power Supply: AC 220V (200-240V AC).

- Voltage Setting Range: 0-30.00V, stepper 0.01V (during charging, the maximum voltage is limitedto power voltage -2V).

- Current Setting Range: for charge, 0.05-5.00A, stepper 0.01A (current adjusted automatically whenpower exceeding limits) for discharge, 0.05-10.00A, stepper 0.01A (maximum current shouldbe power current-0.5A).

- Charging modes: Standard Charging: Support NiMH, NiCd, LiPo, LiFe and Pb batteries CHG-CV: Currentand voltage can be set at a constant voltage (only for batteries)during discharging.

- Discharging modes: DSC-CC: Discharging batteries at a constant current, support testing batterycapacitor current of power supplies DSC-CP : Discharging batteries at a constant power, forconstant power equipment-like use or testing power.

- Automatic Charging/Discharging: The tester supports ?charging-discharging-charging? circlesfor capacity tests.

- Voltage accuracy: between 0-4.5V, 0.003V, ?0.5%, between 4.5-30V, 0.01V, ?0.5%.

- Current accuracy: 0.05-10.00A, 0.005A, ?0.5%.

- Capacity detection: < 10Ah,0.001AH; 10-100Ah,0.01Ah; > 100Ah,0.1Ah

- Four lines: voltage and current channels separated for high test accuracy

- LCD display: voltage, current, time, capacity, and etc.

- PC connection: the tester can connect to a computer through a designated USB-TTL cable formore functions, like graphs, calibration, firmware upgrade, and test circulation.


Precautions:

1. Positive and negative connections should not be reversed. Improper connection could damage thetester.

2. Always use the tester within the allowed ranges.0-30V 5-10A Battery Charge TesterEBC-A10H12/12/2024

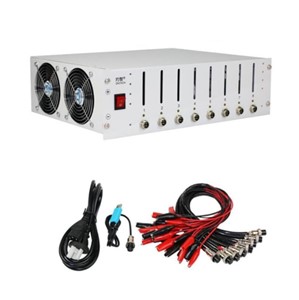

Included with Product:

1 x EBC-X510A Battery Cycle Tester

8 x Alligator Clip Tester Cables

1 x USB to TTL cable

1 x Power supply cable

Specifications:

- Voltage Range: 0-4.5V - Voltage Accuracy: 0.1% ?0.003V- Current Range: 0.1-10A - Current Accuracy: 0.2%?0.005A- Discharging Mode: CC - Discharging Current: 0.1-10A- Discharging Termination: Time/Cut-off Voltage/Manual- Charge Mode: CC-CV - Charge Current: 0.1-10A- Charge Termination: Time/Cut-off Current/Manual - Testing Channel: 8 Separate Channels- Heat Dissipation: Fan - Power Supply: AC 220V (200-240V AC)- Packed Size: 485*410*140mm - Packed Weight: 14KG

This version is supplied without the integrated battery holders.0-4.5V 0.1-10A Battery Cycle TesterEBC-X510A12/12/2024
24VDC 3A 72W SMPS Desk mount power supply, 90-264VAC input voltage range, OVP, OLP, 150W (2s)high peak current protection, 1.2M DC output cable and DC jack (centre +), UL, IEC, EN60950-1, CE, CBsafety standards24VDC 3A 72W SMPS Deskmount Power SupplyFPA072-S24-49/01/2025
24VDC 400mA 10W, 100-240VAC input, switch mode power supply, universal AC interchangeable pinconnectors (AU, EU, UK, US), 1.5M custom DC output cable with 5.5mm x 3.4mm x 9mm straight DC jack,100,000hr MTBF, DOE VI efficiency, IEC/UL/EN60950-1/CE/CB, as per approved drawingsand samples24VDC 400mA 10W SMPS Wallmount PSUFRA012-S24-I9/01/2025
15VDC 2A 30W 100-240VAC input switch mode power supply, 2.8A over-current protection (OCP),universal AC interchangeable pin connectors (AU, EU, UK, US), 1.3M custom DC output cable withwater resistant 5.5mm x 2.1mm DC jack, as per approved drawings and samples15VDC 2A 30W SMPS Deskmount PSUFRA030E-S15-I9/01/2025
12VDC 4A Desktop switch-mode power supply, 90-264VAC input, OVP/OPP/OCP/short-circuitprotection, C14 IEC320 AC mains input connector, LED indicator light, 5.5mm x 2.1mm DC jack, 1000mmDC output cable 14AWG UL1571 (with ferrite), centre negative, as per approved datasheet andsamples12VDC 4A 48W SMPS Deskmount PSUFRA050-S12-49/01/2025
12VDC 4.16A Desktop switch-mode power supply, 90-264VAC input, OVP/OPP/OCP/short-circuitprotection, C14 IEC320 AC mains input connector, LED indicator light, 5.5mm x 2.1mm DC jack, 1000mmDC output cable 14AWG UL1571 (with ferrite), as per approved datasheet and samples12VDC 4.17A 50W SMPS Deskmount PSUFRA050-S12-89/01/2025
24VDC 6.25A 150W SMPS Desk mount power supply, 90-264VAC input voltage range, OVP, OLP, shortcircuit protection, fanless, AC on/off switch, 1.2M DC output cable and DC jack (centre +), UL,IEC, EN60950-1, CE, CB safety standards24VDC 6.25A 150W SMPS Deskmount PSUFRA150-S240-49/01/2025
24VDC 7.5A 180W SMPS Desk mount power supply, 90-264VAC input voltage range, OVP, OLP, shortcircuit protection, fanless, AC on/off switch, 1.2M DC output cable and DC jack (centre +), UL,IEC, EN60950-1, CE, CB safety standards24VDC 7.5A 180W SMPS Deskmount PSUFRA180-S240-46/02/2025
24VDC 336W Enclosed frame switching power supply with PFC function (PF >0.95), highreliability long life design, 14A, 85-264VAC input voltage, 87% efficiency, short circuit / over-load/ over-voltage / over-temperature protection, 105%-135% overload rating, -40c to +70c operatingtemperature range, fan cooled, 5 year warranty24VDC 336W Enclosued Frame Power SupplyHRPG-300-249/01/2025

Showing 1 - 25 of 50 Results
